Cyst-X: A Multi-Center MRI Benchmark and Federated Learning Framework for Malignancy-Risk Stratification of Pancreatic Cystic Neoplasm

Abstract

Pancreatic cancer is projected to be the second-deadliest cancer by 2030, making early detection critical. Intraductal papillary mucinous neoplasms (IPMNs), key cancer precursors, present a clinical dilemma, as current guidelines struggle to stratify malignancy risk, leading to unnecessary surgeries or missed diagnoses. Here, we introduce Cyst-X, a multi-center MRI benchmark and a federated learning framework for IPMN malignancy-risk stratification. The dataset comprises 1,461 abdominal MRI scans from 764 patients at seven international centers, with three-tier malignancy labels anchored in histopathology or three-year imaging follow-up and expert pancreas segmentations. The pipeline couples the PanSegNet pancreas segmenter with a 3D DenseNet-121 classifier and a parallel radiomics predictor. On internal cross-validation, the deep learning classifier reached a mean area under the receiver operating characteristic curve (AUC) of 0.85 on T2-weighted MRI for high-risk versus low- or no-risk discrimination, with the average precision rising from a prevalence baseline of 0.23 to 0.64. This performance was preserved (AUC 0.85, FedProx) when training was distributed across institutions without exchange of raw patient images. Benchmarked against three blinded radiologists on a 629-case reader subset evaluated under imaging-only conditions, the classifier matched or exceeded sensitivity at comparable specificity.

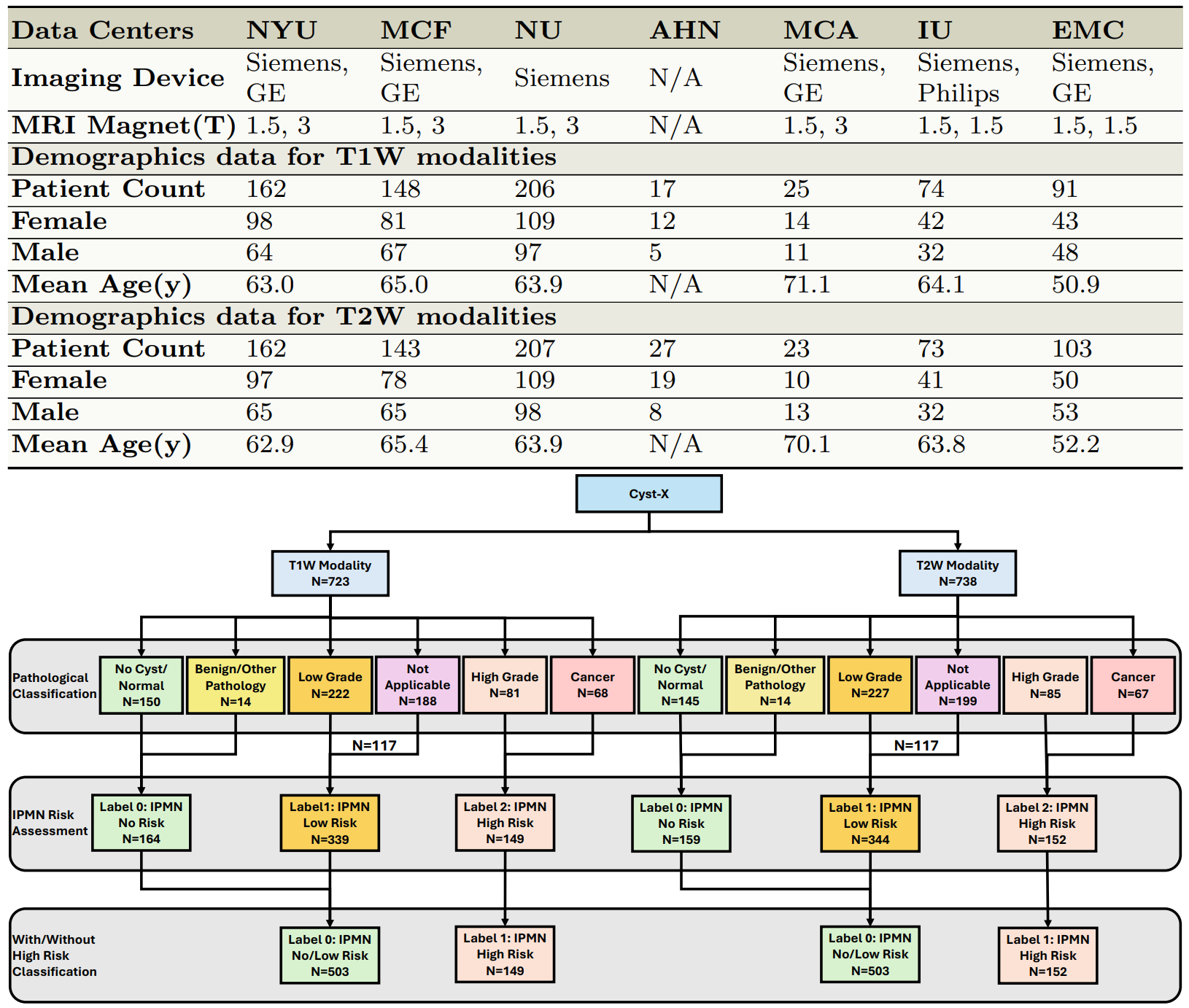

Dataset Composition and Risk Distribution

• Multi-Center Cohort: 1,461 MRI scans (723 T1W, 738 T2W) acquired across 7 international medical centers spanning multiple scanner vendors (Siemens, GE, Philips) and field strengths (1.5T, 3T).
• Pathology-Anchored Labels: Standardized classification into High-Risk (high-grade dysplasia, carcinoma in situ, invasive cancer), Low-Risk (low/intermediate dysplasia or 3-year confirmed imaging stability), and No-Risk/Control.

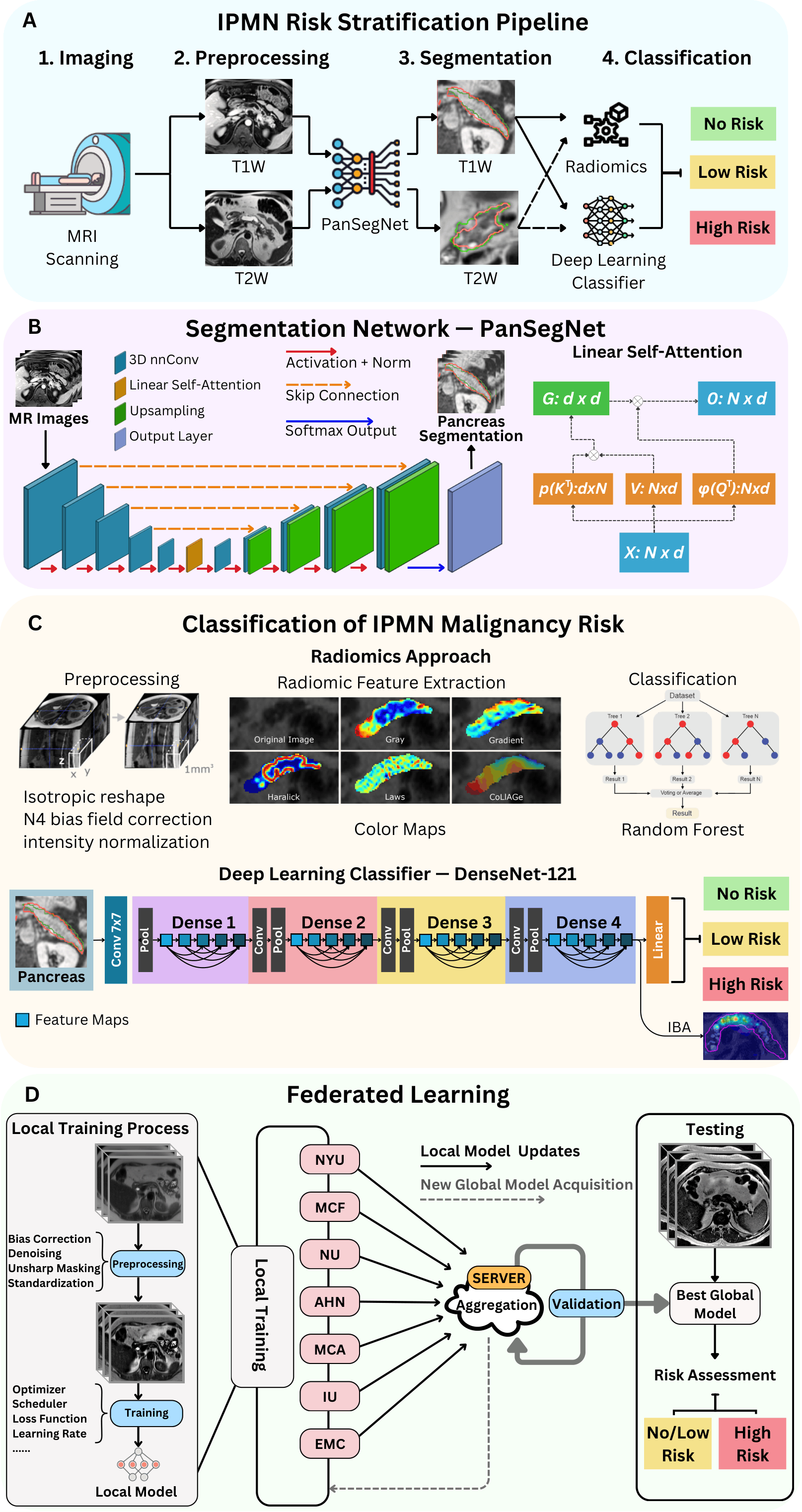

IPMN Risk Stratification Pipeline

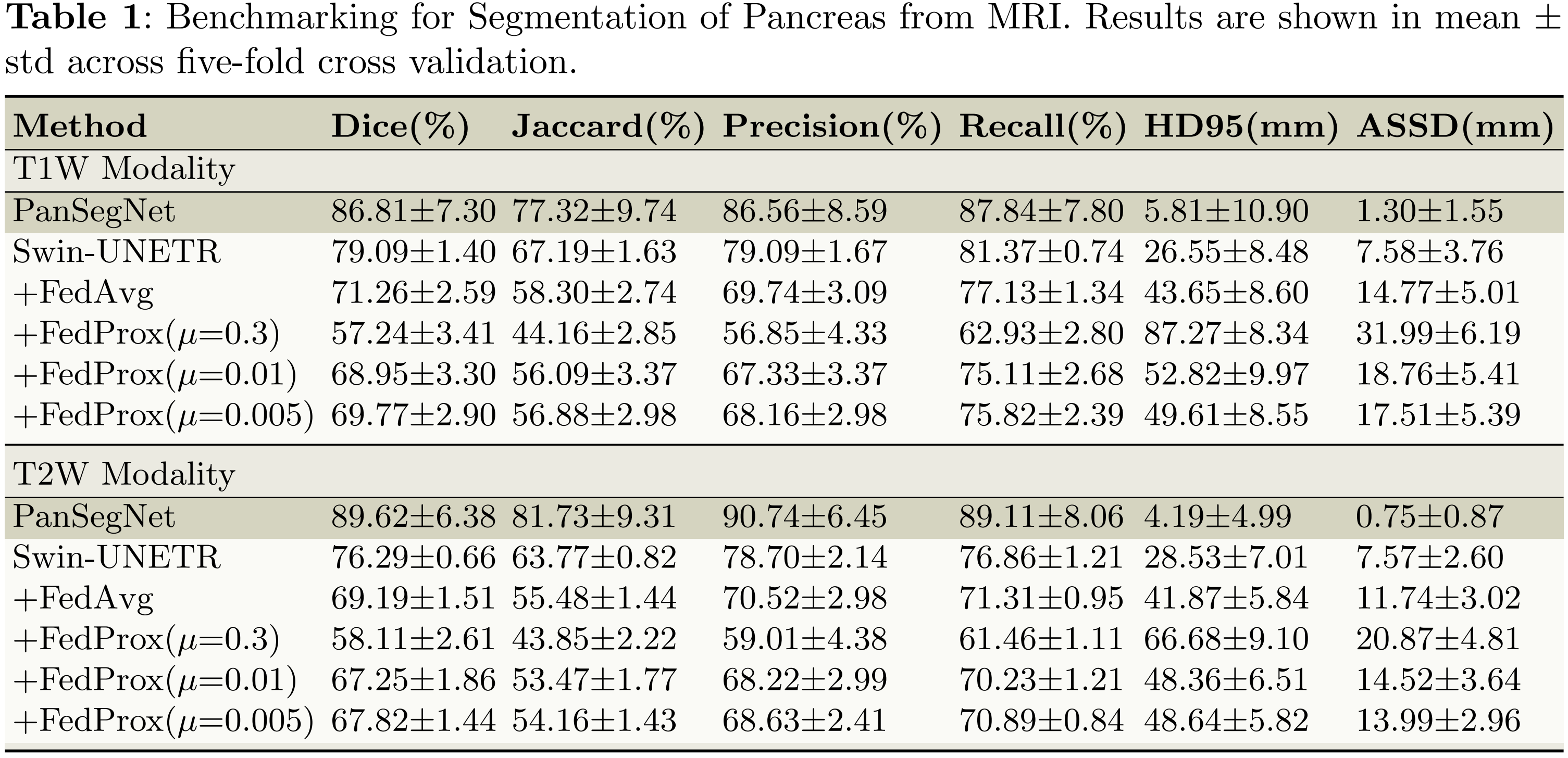

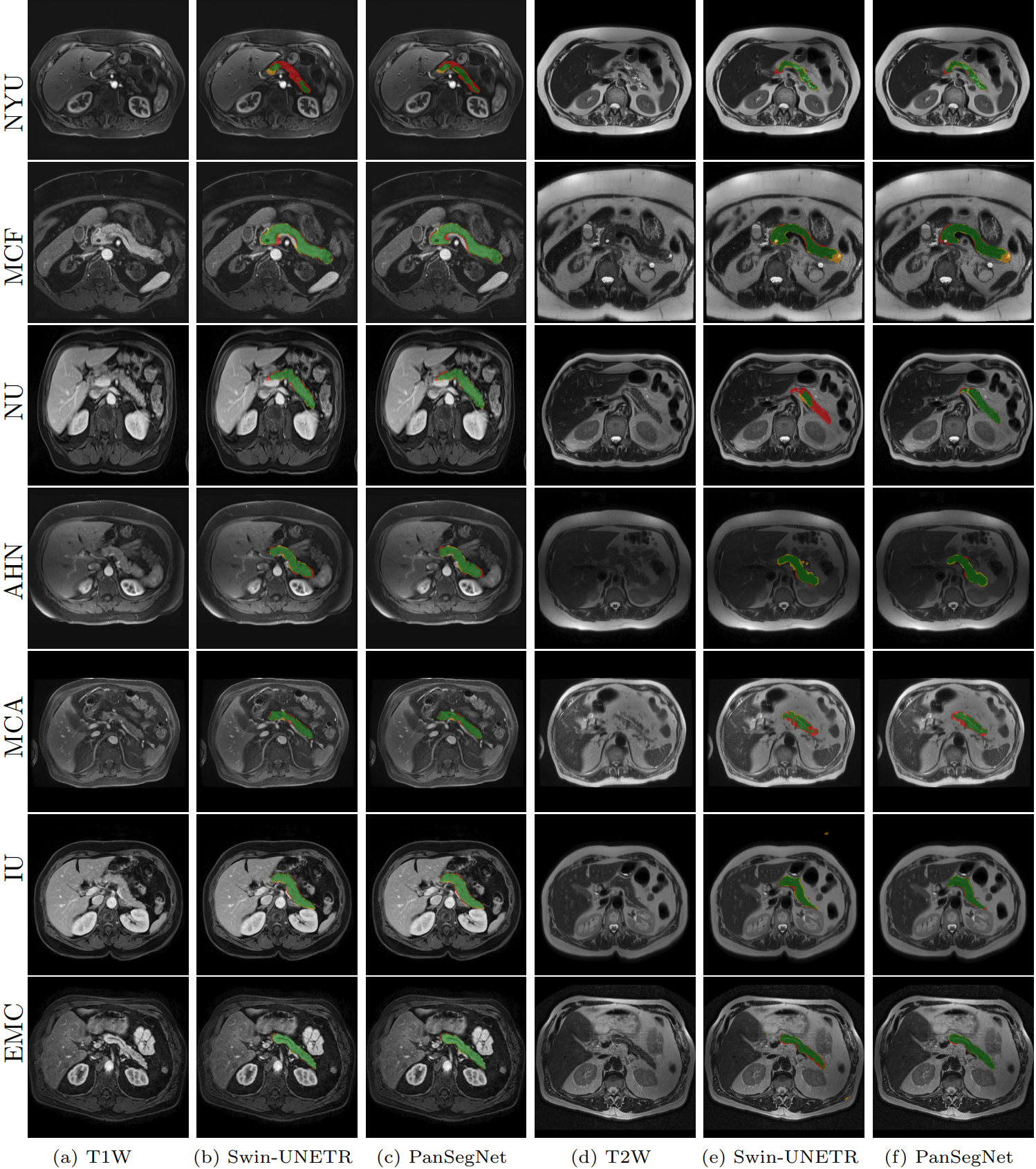

Pancreas Segmentation Benchmark

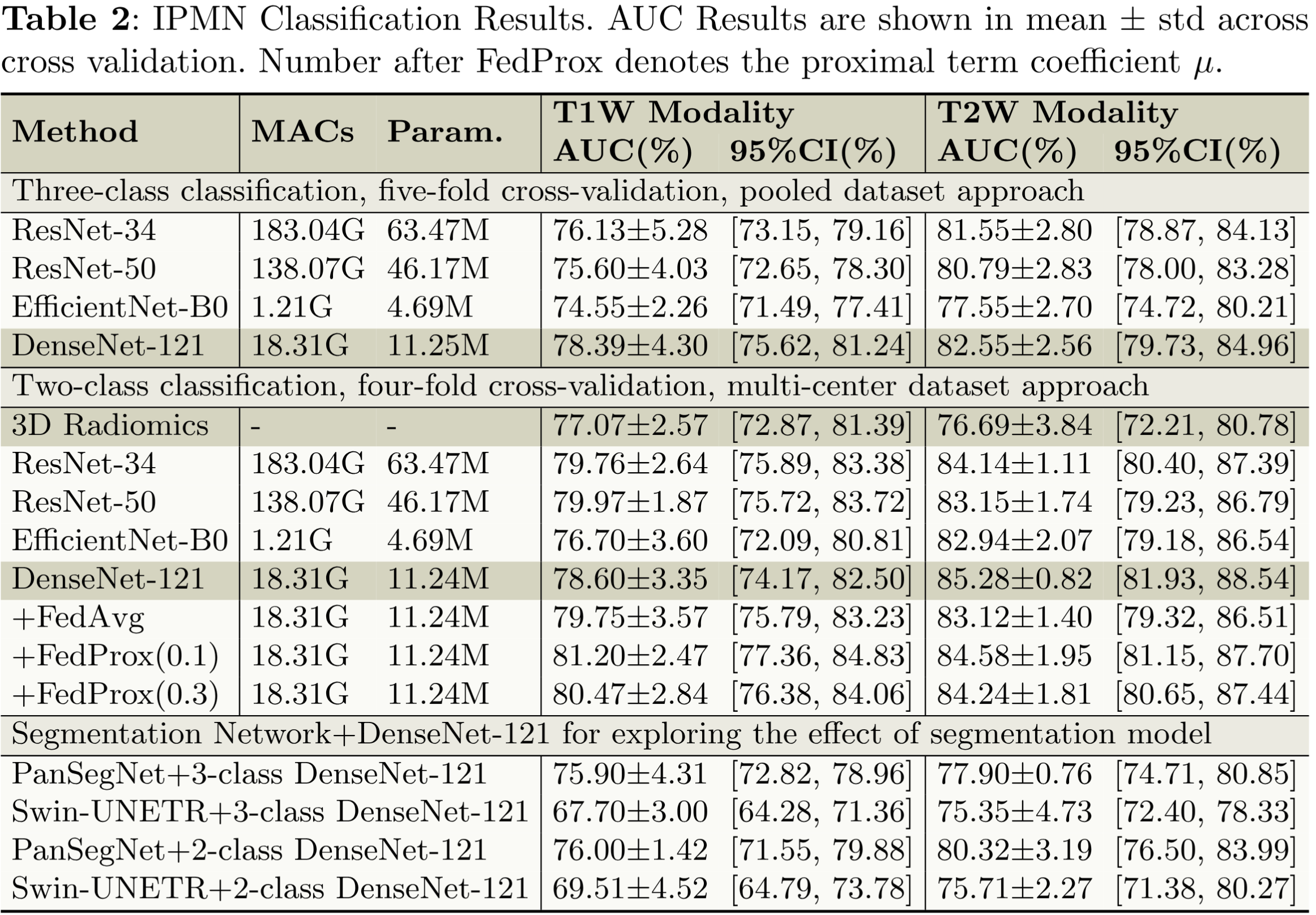

Malignancy Risk Classification Benchmark

BibTeX Citation

@article{pan2025cyst,
  title={Cyst-X: A Multi-Center MRI Benchmark and Federated Learning Framework for Malignancy-Risk Stratification of Pancreatic Cystic Neoplasm},
  author={Pan, Hongyi and Durak, Gorkem and Keles, Elif and Hong, Ziliang and Seyithanoglu, Deniz and Zhang, Zheyuan and Medetalibeyoglu, Alpay and Aktas, Halil Ertugrul and Bejar, Andrea Mia and Taktak, Yavuz and others},
  journal={arXiv preprint arXiv:2507.22017},
  year={2025}
}
